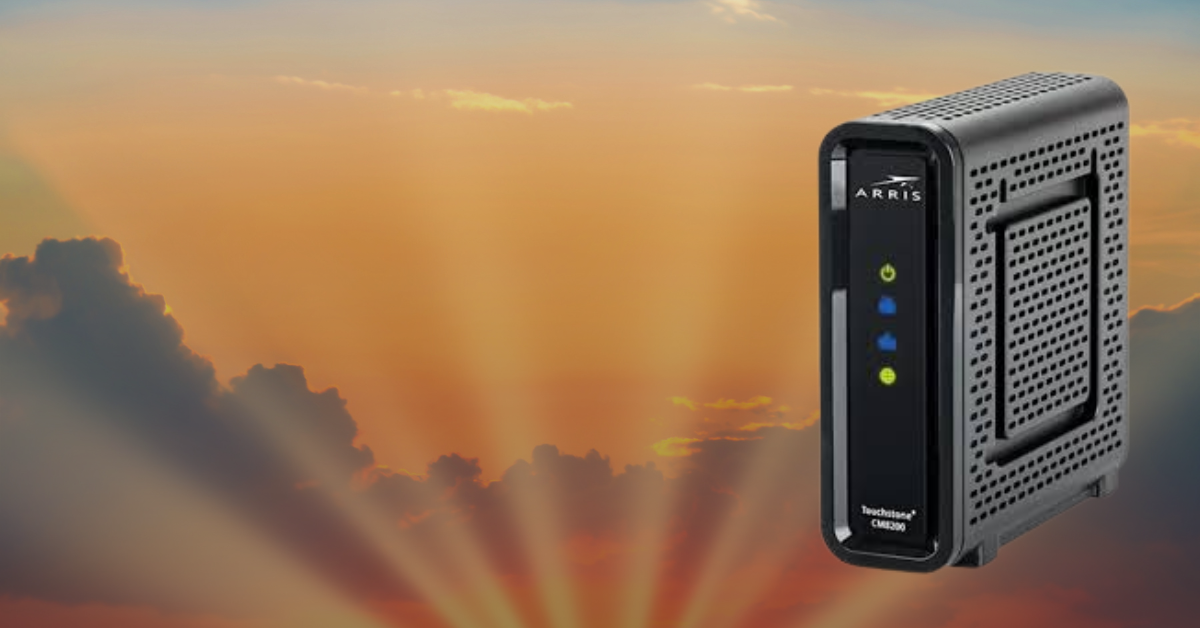

The Arris CM8200A is a DOCSIS 3.1 standalone cable modem built for gigabit and multi-gigabit cable internet plans. This guide walks you through setup, activation, admin access, network settings, status lights, factory reset, and fixes for the most common problems, written so it is easy to follow whether this is your first modem or your tenth.
Important: This Is a Modem, Not a Router
The CM8200A is a modem only. It has no built-in WiFi and does not create a wireless network on its own. To get WiFi and connect phones, laptops, and smart home devices, you connect a separate WiFi router to the modem with an Ethernet cable. This matters for several sections below, especially WiFi name, WiFi password, and bridge mode, so it is worth knowing up front.
Key Features
- DOCSIS 3.1 support, backward compatible with DOCSIS 3.0 networks
- 32x8 channel bonding (32 downstream, 8 upstream) on SC-QAM channels
- 2 x 192 MHz OFDM downstream and 2 x 96 MHz OFDMA upstream channels
- Capable of multi-gigabit speeds on supported plans (up to roughly 2.5 Gbps downstream in ideal conditions)
- Two Gigabit Ethernet ports on the back (see the note below about active ports)
- Coaxial F-connector for the cable line
- External power supply
- Front-panel LED status lights for quick diagnosis
Note on the Ethernet ports: although the CM8200A has two physical Gigabit Ethernet ports, many units configured for residential service only have one active port (Port 1). If a device connected to the second port does not get a connection, move it to Port 1. To use more than one wired device, connect a router or switch to the active port.
What You Need Before Setup
- An active cable internet account with a supported provider
- A coaxial cable line, usually from a wall outlet
- The included power adapter
- An Ethernet cable (CAT5e or CAT6 recommended)
- A WiFi router, if you want wireless internet
- Your ISP account login or account number for activation
How to Set Up the Arris CM8200A
- Place the modem near your cable wall outlet and your router, in an open spot with airflow.
- Connect the coaxial cable from the wall outlet to the coax (F-connector) port on the back of the modem. Hand-tighten it firmly.
- Connect one end of an Ethernet cable to Port 1 on the modem and the other end to the WAN or Internet port on your router. If you are connecting a single computer for testing, plug it into Port 1 instead.
- Plug the power adapter into the modem and into a wall outlet.
- Wait for the modem to power up and connect. This can take 5 to 15 minutes on first startup as it locks onto the signal and downloads any provisioning file.
- When the Online light is solid, the modem is connected and ready. If you connected a router, power it on now.
How to Activate the Modem With Your ISP
A new or transferred modem usually needs to be activated and provisioned by your internet provider before it will pass traffic. Most providers offer a self-activation app or webpage.
- Make sure the modem is fully connected and powered on, and that the Online light is on or flashing.
- Have your ISP account details and the modem details ready. The modem's MAC address and serial number are printed on the label on the bottom of the unit.
- Open your provider's activation app or website, or call their activation line.
- Follow the prompts to register the modem to your account.
- When activation finishes, the modem will usually reboot on its own. Wait for the Online light to go solid, then test your connection.
If self-activation stalls, call your provider and ask them to manually provision the modem using its MAC address.
How to Access the Admin and Status Settings
The CM8200A has a built-in status page you can reach from a connected device. This page is mainly for checking connection health and signal levels, not for changing WiFi or routing settings, because the modem does not handle those.
- Connect a computer or phone to the modem, either directly into the active Ethernet port or through your router.
- Open a web browser.
- In the address bar, type 192.168.100.1 and press Enter.
- The modem status page will load. On most cable modem firmware this page is view-only and does not require a login.
- If a login is requested, try the credentials printed on the label on the bottom of the modem. If those are not present, the default is often the username admin with the password password, though this varies by provider firmware.
On the status page you can view downstream and upstream signal levels, connection status, event logs, and the modem's software version. These details are useful when troubleshooting with your ISP.
How to Change Your WiFi Name (SSID)
The CM8200A does not broadcast WiFi, so there is no WiFi name stored on the modem itself. Your WiFi name comes from the router connected to the modem. To change it:
- Connect to your router's network or plug into it with Ethernet.
- Open the router's admin page in a browser. The address is usually 192.168.1.1 or 192.168.0.1, or a custom address printed on the router.
- Log in with the router's admin credentials, often printed on the router label.
- Find the wireless or WiFi settings section.
- Edit the SSID or Network Name field, then save. If your router has separate 2.4 GHz and 5 GHz networks, update each one as desired.
- Your devices will need to reconnect to the renamed network.
How to Change Your WiFi Password
As with the network name, the WiFi password lives on your router, not on the CM8200A. To change it:
- Log in to your router's admin page as described above.
- Open the wireless or WiFi security settings.
- Locate the password, passphrase, or pre-shared key field.
- Enter a new strong password and save. Use WPA2 or WPA3 security if your router offers it.
- Reconnect each device using the new password.
How to Set Up Bridge Mode
A standalone cable modem like the CM8200A is, by design, already in what people think of as bridge or passthrough mode. It does not perform routing, NAT, or firewall functions for your network. It simply passes the connection straight through to whatever you plug into the Ethernet port. There is no bridge mode toggle to enable because the modem never leaves that state.
What this means in practice:
- If you are switching from an all-in-one gateway and want true bridge behavior, the CM8200A gives you that automatically. Just connect your own router to it.
- Your router handles all routing, NAT, port forwarding, and WiFi. Manage those features in the router's admin page, not on the modem.
- The public IP address from your ISP is handed to the device connected to the modem's Ethernet port, normally your router.
Understanding the LED Status Lights
The front lights tell you the modem's connection status at a glance. Exact labels can vary slightly, but the typical behavior is below.
| Light | State | Meaning |
|---|---|---|
| Power | Solid | Modem has power and is on |
| Power | Off | No power. Check the adapter and outlet |
| Receive / Downstream | Flashing | Searching for the downstream signal |
| Receive / Downstream | Solid | Downstream connection locked |
| Send / Upstream | Flashing | Searching for the upstream signal |
| Send / Upstream | Solid | Upstream connection locked |
| Online | Flashing | Registering with the network and getting setup info |
| Online | Solid | Modem is online and ready |
| Link (on Ethernet port) | On or flashing | A connected device is detected and passing data |
A quick read: when Power, Receive, Send, and Online are all solid, the modem is fully connected. If Receive and Send keep flashing and Online stays off, the modem is not reaching the network. If all three flash together while Online is on, a firmware update is in progress, so wait it out without unplugging.
How to Restart (Reboot) the Modem
A reboot clears temporary glitches and is the first fix to try for most connection problems. It does not erase any settings.
- Unplug the power adapter from the modem.
- Wait 30 to 60 seconds.
- Plug the power back in.
- Wait for the lights to cycle and the Online light to go solid before testing.
How to Factory Reset the Modem
A factory reset returns the modem to its original state. Use it only if a reboot and ISP troubleshooting have not worked, since you may need to re-activate the modem afterward.
- Make sure the modem is powered on.
- Find the small recessed Reset button on the back of the modem.
- Using a paperclip or pin, press and hold the button for about 15 to 30 seconds.
- Release the button. The modem will reboot and the lights will cycle.
- Wait for the Online light to go solid. If service does not return, contact your ISP to re-provision the modem.
Troubleshooting Common Issues
No internet, Online light is off
- Confirm the coaxial cable is hand-tight at both the wall and the modem.
- Confirm the Ethernet cable runs from the active modem port to your router's WAN port.
- Reboot the modem by unplugging it for 60 seconds.
- If the Online light still will not go solid, the signal may not be reaching your modem. Check for a service outage and contact your ISP.
Downstream (Receive) light keeps flashing
- This means the modem cannot lock onto the incoming signal.
- Check the coax connection and look for damaged or loose cable and splitters. Try removing any splitter so the modem connects directly.
- Reboot the modem.
- If it continues, the issue is usually line noise or a signal problem on the provider side. Contact your ISP to check signal levels.
Upstream (Send) light keeps flashing
- The modem found a downstream signal but cannot complete the upstream connection to the provider.
- Reboot the modem and reseat the coax cable.
- If it does not resolve, this almost always points to a provider-side issue. Contact your ISP and mention the upstream light is not locking.
Slow speeds
- Test speed with a computer wired directly into the active modem port to rule out the router or WiFi.
- Confirm your plan speed matches what you expect, and that your router and Ethernet cables support gigabit (CAT5e or better).
- Reboot both the modem and router.
- Check the modem status page at 192.168.100.1 for signal levels and share them with your ISP if speeds are still low.
Frequent disconnections
- Reseat all cable connections and remove unnecessary splitters.
- Check the event log on the status page for repeated errors.
- Make sure the modem is not overheating in a closed cabinet. Give it airflow.
- If drops continue, ask your ISP to check signal stability on your line.
Cannot reach the 192.168.100.1 status page
- Make sure the device is connected to the modem or to a router that is connected to the modem.
- Try a different browser or clear your browser cache.
- Type the address exactly, with no extra characters.
- Reboot the modem and try again.
Second Ethernet port not working
- Many CM8200A units only have Port 1 active. Move your device to Port 1.
- To connect more than one wired device, use a router or network switch on the active port.
Frequently Asked Questions
Does the Arris CM8200A have built-in WiFi?
No. It is a modem only. You need a separate WiFi router to create a wireless network.
Do I need a router with this modem?
Yes for most homes. The modem connects one wired device on its own. A router lets you add WiFi and connect many devices.
What internet providers work with the CM8200A?
It works with major cable providers on supported plans. Always check your provider's approved modem list and confirm it covers your speed tier before buying.
How fast can it go?
As a DOCSIS 3.1 modem with 32x8 channel bonding and OFDM channels, it supports gigabit and multi-gigabit plans, up to roughly 2.5 Gbps downstream in ideal conditions. Real speeds depend on your plan and network.
Why does it have two Ethernet ports if only one works?
The hardware includes two ports, but residential provisioning often enables only Port 1. Use Port 1, and add a router or switch to connect multiple devices.
Will a factory reset delete my WiFi settings?
Your WiFi settings live on your router, not the modem, so a modem reset does not touch them. A modem reset may require re-activation with your ISP.
Specifications
| Specification | Detail |
|---|---|
| Standard | DOCSIS 3.1, backward compatible with DOCSIS 3.0 |
| Channel bonding | 32 downstream x 8 upstream (SC-QAM) |
| OFDM / OFDMA | 2 x 192 MHz downstream, 2 x 96 MHz upstream |
| Max speed | Up to about 2.5 Gbps downstream on supported plans |
| Ethernet | Two Gigabit (10/100/1000) RJ-45 ports; Port 1 typically active |
| Cable connection | Coaxial F-connector |
| Power | External power adapter, 12V DC |
| WiFi | None (modem only) |
| Default status page | 192.168.100.1 |
Quick Reference
- Status page address: 192.168.100.1
- Reboot: unplug 60 seconds, plug back in
- Factory reset: hold the recessed Reset button 15 to 30 seconds
- WiFi name and password: set on your router, not the modem
- Bridge mode: already built in, no setting needed
- Active Ethernet port: use Port 1
