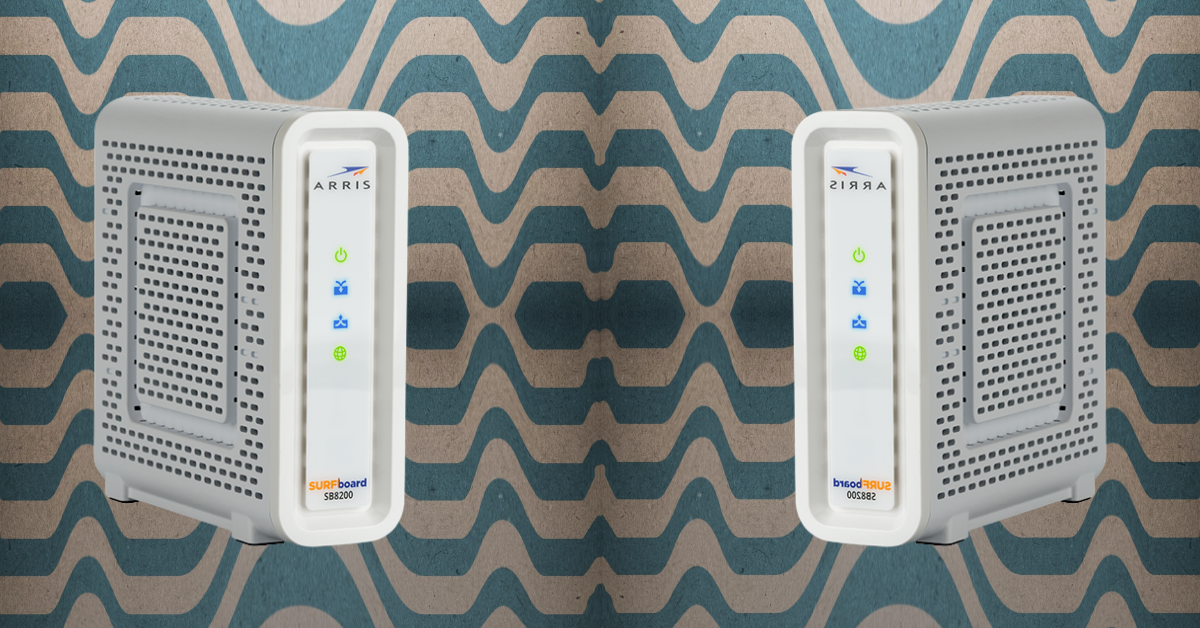

This guide covers everything you need to set up, manage, and troubleshoot the Arris SURFboard SB8200 DOCSIS 3.1 cable modem. It is written for all experience levels, so each section uses plain steps you can follow in order.
One thing to know before you start: the SB8200 is a modem only. It does not have WiFi, a built-in router, or a phone connection. It gives you a fast internet feed that you plug a WiFi router into. This affects a few of the sections below, which is explained where it matters.
Because the SB8200 has no built-in WiFi, you will need a separate wireless router to create your home network. Browse wireless routers, or for whole-home coverage see mesh WiFi systems.
Key Features
- DOCSIS 3.1 cable modem, backward compatible with DOCSIS 3.0.
- Best for cable internet plans up to 1 Gbps. The hardware supports link aggregation toward 2 Gbps where the provider offers it.
- 32 downstream and 8 upstream bonded channels in DOCSIS 3.0 mode, or 2x2 OFDM and OFDMA in DOCSIS 3.1 mode.
- Two 1-Gigabit Ethernet ports. Both can be used at once for link aggregation on supported plans.
- Supports both IPv4 and IPv6.
- Built-in status and diagnostics page at 192.168.100.1.
- No WiFi, no router, and no telephone or voice service.
- Works with major cable internet providers. It does not work with fiber, DSL, or satellite service.
What's in the Box
- Arris SURFboard SB8200 cable modem
- Power adapter
- Ethernet cable
- Quick start guide
A coaxial cable is usually already run to your home by your cable provider. If you do not have one, any standard coaxial cable will work.
Compatibility: Which Providers Work
The SB8200 is a cable modem. It works with cable internet from providers such as Xfinity (Comcast), Cox, and Spectrum, along with many other cable companies. We also stock modems for Optimum, Mediacom, and Sparklight (Cable One). You can browse the full lineup on the cable modems page.
It does not work with fiber or DSL service. That means it is not compatible with AT&T Fiber, Verizon Fios, CenturyLink fiber or DSL, Frontier, or any satellite internet service. If your internet does not come through a coaxial cable, this modem is not the right device.
Before buying or activating, it is worth confirming the SB8200 is on your provider's approved device list.
How to Install and Connect the SB8200
Follow these steps in order for a first-time setup.
- Place the modem near a coaxial cable outlet and a power outlet, with room for airflow around it.
- Connect the coaxial cable to the port on the back of the modem and hand-tighten it. A loose coax connection is one of the most common causes of slow or dropped service.
- Plug the power adapter into the modem and into the wall. The modem will power on automatically.
- Wait for the modem to come online. This can take 2 to 10 minutes on the first connection. Watch the front lights until the Online light is solid (see the LED section below).
- Connect an Ethernet cable from one of the two ports on the back of the modem to your WiFi router, or directly to a single computer for testing.
- Activate the modem with your provider (see the next section). The modem will not give you internet until your provider registers it.
How to Activate the SB8200 with Your Provider
A new or moved modem has to be registered on your provider's network before it can connect. Activation links the modem's MAC address to your account.
- Find the modem's MAC address. It is printed on the label on the bottom of the unit, often listed as CM MAC or HFC MAC.
- Have your account number ready.
- Contact your provider using one of these methods, whichever they offer:
- Their self-activation website or mobile app
- Their activation phone line
- Provide the MAC address when asked, and follow the prompts to register the device.
- After activation, restart the modem if it does not come online within a few minutes. Unplug the power for 30 seconds, then plug it back in.
If the Online light keeps blinking and never turns solid, the modem usually is not yet registered. Calling your provider to confirm the MAC address is on your account fixes most of these cases.
How to Access the Admin and Status Page (192.168.100.1)
The SB8200 has a built-in status page where you can view connection details, signal levels, and event logs. This is a diagnostics page, not a settings page like you would find on a router.
- Connect a computer or phone to the modem, either through one of the Ethernet ports or through a router that is connected to the modem.
- Open a web browser.
- Type 192.168.100.1 into the address bar and press Enter.
- If you are asked to log in, the default username is admin and the default password is password.
Once inside, you can check whether the modem is online, view the downstream and upstream channels, see signal strength numbers, and read the connection event log. These details are useful when troubleshooting, and your provider may ask you to read some of them off during a support call.
How to Change the WiFi Password
The SB8200 does not broadcast WiFi, so there is no WiFi password stored on the modem itself. Your WiFi network is created by the router that is plugged into the modem, and that is where the password lives. If you do not have a router yet, browse our wireless routers.
To change your WiFi password:
- Find the brand and model of your router (the device that broadcasts your WiFi network).
- Open your router's admin page in a browser. The address is commonly 192.168.0.1 or 192.168.1.1, and it is usually printed on a label on the router.
- Log in, then look for the Wireless or WiFi settings.
- Find the password or pre-shared key field, enter a new password, and save.
After saving, your devices will need the new password to reconnect.
How to Change the WiFi Name (SSID)
As with the password, the WiFi name, also called the SSID, is set on your router, not on the SB8200. The modem has no network name to change.
- Open your router's admin page in a browser, using the same address you used for the password.
- Log in and open the Wireless or WiFi settings.
- Find the Network Name or SSID field, type the new name, and save.
Renaming the network will disconnect your devices briefly. Reconnect them by selecting the new name from your WiFi list and entering the password.
Bridge Mode
Bridge mode is a setting found on modem-router combo units, where you turn off the built-in router so a separate router can take over. The SB8200 is already a standalone modem with no router inside it, so there is nothing to switch off and no bridge mode setting to enable.
In practice this means the SB8200 already behaves the way a combo unit does in bridge mode. It passes the connection straight through to whatever router you plug into it, and your router handles the network. You do not need to change anything on the modem to use it with your own router.
Understanding the LED Lights
The front of the SB8200 has four lights: Power, Receive, Send, and Online. There are also lights on the Ethernet ports at the back. A solid light generally means a stable connection, and a blinking light means the modem is still working on it.
- Power: Solid green means the modem has power and is working.
- Receive (downstream): Solid green means a standard channel is connected. Solid blue means a faster DOCSIS 3.1 bonded connection is active.
- Send (upstream): Solid green or solid blue, following the same pattern as Receive.
- Online: Blinking while the modem connects and registers, then solid green once it is online.
When all four front lights are solid, the modem is fully online. Blue is the faster connection, green is a normal working connection.
If the Receive and Send lights blink together for several minutes, the modem is likely installing a firmware update. Wait 10 to 15 minutes and do not unplug it during this time.
The Ethernet port lights show the link to your router or computer. A lit port light confirms the cable connection is active.
How to Restart and Reset the SB8200
Restart (power cycle)
A restart fixes many temporary problems and does not erase anything.
- Unplug the power adapter from the modem.
- Wait 30 to 60 seconds.
- Plug it back in and wait 2 to 10 minutes for the Online light to turn solid.
Factory reset
A factory reset returns the modem to its original state. Only do this if support asks you to, or if a restart has not solved a persistent problem.
- Find the small recessed reset button on the back of the modem.
- Using a paperclip or similar tool, press and hold the button for 15 to 20 seconds.
- Release the button and let the modem fully restart, which can take several minutes.
Firmware Updates
Firmware on the SB8200 is managed by your internet provider and is pushed to the modem automatically. There is no manual update button for users. If the Receive and Send lights blink together for a few minutes, an update is most likely installing. Leave the modem plugged in until it finishes.
Troubleshooting Common Issues
No internet, or the Online light will not turn solid
- Check that the coaxial cable is hand-tight at both the modem and the wall.
- Confirm all Ethernet cables are seated firmly.
- Restart the modem by unplugging it for 30 to 60 seconds.
- Confirm the modem is activated and the MAC address is on your account. A blinking Online light that never goes solid usually points to an activation problem.
- Check for a service outage in your area by contacting your provider.
Slow speeds or not getting your full plan speed
- Test with a computer connected directly to the modem with an Ethernet cable, which rules out WiFi as the cause.
- Use a quality Ethernet cable rated for gigabit speeds.
- Open 192.168.100.1 and check the signal levels. As a general guide, downstream power should sit roughly between -7 and +7 dBmV, and the signal-to-noise ratio should be at least 35 dB. Values far outside these ranges suggest a line or signal problem your provider should inspect.
- Restart the modem, then test again.
- Confirm your plan speed with your provider, since the modem cannot deliver more than your plan allows.
Frequent disconnects or random drops
- Inspect the coaxial cable and connectors for looseness, kinks, or corrosion.
- Remove any unnecessary coax splitters between the wall and the modem, since each splitter weakens the signal.
- Check signal levels at 192.168.100.1 as described above.
- Try a different coax wall outlet if one is available.
- If drops continue and signal levels look poor, ask your provider to check the line.
Cannot reach 192.168.100.1
- Make sure the device you are using is connected to the modem, either directly or through a router connected to the modem.
- Type the address exactly as 192.168.100.1 with no extra characters.
- Try a different browser or a private browsing window.
- Restart the modem and try again once it is back online.
An Ethernet device will not connect
- Reseat the Ethernet cable at both ends until you hear or feel it click.
- Try the second Ethernet port on the modem.
- Swap in a different Ethernet cable to rule out a damaged one.
- Confirm the port light lights up when the cable is connected.
The modem will not power on
- Confirm the power adapter is firmly connected to both the modem and the wall.
- Plug the modem into a different wall outlet to rule out a dead outlet.
- If no lights come on at all with a known good outlet, the power adapter or modem may need to be replaced.
Lights are stuck blinking and will not go solid
- Wait at least 10 to 15 minutes first, in case a firmware update is installing.
- Check the coax connection at the wall and modem.
- Restart the modem.
- If it still will not finish connecting, contact your provider to confirm there is signal to your address and that the modem is registered.
Specifications
| Modem type | Cable modem, DOCSIS 3.1 (backward compatible with DOCSIS 3.0) |
| Best for plans | Up to 1 Gbps, with link aggregation toward 2 Gbps on supported plans |
| Channels | 32 x 8 bonded (DOCSIS 3.0) or 2x2 OFDM and OFDMA (DOCSIS 3.1) |
| Ethernet ports | Two 1-Gigabit Ethernet ports |
| IP support | IPv4 and IPv6 |
| WiFi | None |
| Router | None |
| Telephone or voice | None |
| Status page | 192.168.100.1 |
| Compatible service | Cable internet only (not fiber, DSL, or satellite) |
Frequently Asked Questions
Does the Arris SB8200 have WiFi?
No. The SB8200 is a modem only. To get WiFi, connect a separate WiFi router to one of the modem's Ethernet ports.
What is the default login for the SB8200?
At 192.168.100.1, the default username is admin and the default password is password. This opens the status and diagnostics page.
How do I put the SB8200 in bridge mode?
There is no bridge mode setting because the SB8200 has no built-in router. It already passes the connection straight through to your own router, which is the same result bridge mode produces on combo units.
Why is my Online light blinking and never turning solid?
This almost always means the modem is not yet activated on your account. Contact your provider to register the modem's MAC address.
What is the difference between a green and a blue light?
Green is a normal working connection. Blue is the faster DOCSIS 3.1 bonded connection. Both mean the modem is online.
Can I use both Ethernet ports at once?
Yes, on plans that support link aggregation. Many users only need one port connected to a router.
Support and Warranty
For connection problems that point to your line, signal, or account, your internet provider is the first contact. For hardware faults, Arris provides support and a manufacturer warranty on the SB8200. Keep your proof of purchase, since a warranty claim may require it.
