Key Takeaways
- Solid lights generally mean a stable connection, while blinking or red lights usually signal an issue with power, signal, or internet authentication.
- Most modem light problems can be solved with a 60-second power cycle: unplug the modem, wait one minute, then plug it back in.
- If lights stay off, blink continuously, or turn red after rebooting, your ISP likely needs to check the line or re-provision your modem.
CommScope and Vantiva manufacture many of the cable modems and gateways issued by major ISPs including Xfinity, Spectrum, Cox, and Mediacom. The LED lights on the front panel tell you exactly what your modem is doing. This guide explains what each light means and walks you through quick fixes for the most common problems.

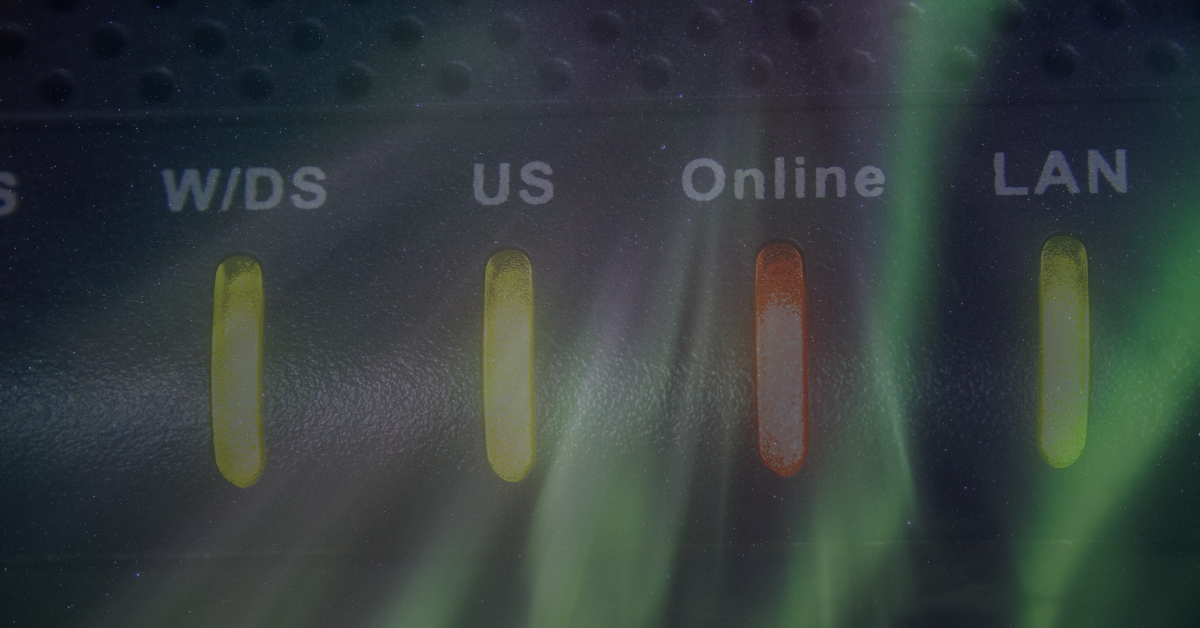

What Each CommScope/Vantiva Modem Light Means
Power Light
Solid white or green means the modem has power and is working normally. Off means no power is reaching the modem. A blinking power light usually means the modem is booting up or installing a firmware update, which can take up to 10 minutes.
Downstream (DS) Light
Solid means the modem is receiving signal from your ISP. Blinking means it is searching for or trying to lock onto a downstream channel. Off means no signal is being received.
Upstream (US) Light
Solid means the modem is successfully sending data back to your ISP. Blinking means it is trying to connect. Off means there is no upstream connection.
Online Light
Solid means your modem is connected to the internet. Blinking means it is authenticating with your ISP. Off means the connection has not completed.
WiFi Light (2.4G and 5G)
Solid means WiFi is broadcasting. Blinking indicates active data transfer. Off means WiFi is disabled or not functioning.
Phone Light (Tel 1 and Tel 2)
Solid means the phone line is registered and ready. Blinking means a call is in progress. Off means no phone service is active on that port.
Battery Light (if equipped)
Solid green means the backup battery is fully charged. Blinking or solid red usually signals a low or failing battery that needs replacement.
How to Fix Common CommScope/Vantiva Modem Light Issues
Step 1: Power Cycle the Modem
This fixes most issues in under two minutes.
- Unplug the power cord from the back of the modem.
- If your modem has a backup battery, remove it.
- Wait 60 seconds.
- Reinsert the battery (if applicable), then plug the power cord back in.
- Wait 5 to 10 minutes for all lights to stabilize.
Step 2: Check Your Cables
Make sure the coaxial cable is screwed in tightly at both the modem and the wall outlet. A loose coax is the most common cause of blinking US or DS lights. If you have splitters between the wall and your modem, remove them and connect the modem directly.
Step 3: Try a Different Outlet
If the power light is off or unstable, plug the modem into a different wall outlet. Avoid power strips while testing, as a failing surge protector can cause power issues.
Step 4: Check for an ISP Outage
Visit your provider's outage page or check Downdetector before troubleshooting further. If there is an outage in your area, no amount of rebooting will restore service.
Step 5: Factory Reset (Last Resort)
Locate the small reset button on the back of the modem. Press and hold it with a paperclip for 15 to 30 seconds until the lights flash. The modem will reboot with factory default settings. Note: this erases any custom WiFi name or password.
Specific Light Patterns and What to Do
Power Light Is Off
The modem is not receiving power. Check the power cord, try a different outlet, and confirm the power adapter is securely plugged in at both ends. If still no light, the modem may have failed.
US or DS Light Keeps Blinking
The modem cannot lock onto a signal. Tighten the coax connection, remove any splitters, and power cycle. If it continues blinking after 10 minutes, contact your ISP to push a signal or check the line.
Online Light Is Off but US and DS Are Solid
The modem has signal but is not authenticated with your ISP. Power cycle the modem. If the problem persists, call your ISP and ask them to verify your modem's MAC address is provisioned to your account.
WiFi Light Is Off
WiFi may be disabled in the modem's settings. Log in to your modem's admin page (usually 192.168.0.1 or 10.0.0.1) and check the wireless settings. If you cannot access the admin page, factory reset the modem.
All Lights Are Blinking Together
This usually means the modem is performing a firmware update. Do not unplug it. Wait 10 to 15 minutes for the process to complete.
When to Replace Your Modem
If you have followed every step and the lights still indicate a problem, your modem may have reached the end of its life. Cable modems typically last 4 to 6 years. ISP-issued modems can be exchanged at no cost by visiting your local store or requesting a swap online. If you own your modem and want to upgrade, browse our approved modem collection for current DOCSIS 3.1 options compatible with your provider.
When to Contact Your ISP
Call your provider if any of the following occur:
- The US or DS lights blink for more than 15 minutes after a reboot.
- The online light never turns solid even with solid US and DS lights.
- Lights cycle on and off repeatedly.
- You suspect a damaged coax line in the wall or outside the home.
Your ISP can run a signal test on your modem remotely and dispatch a technician if needed.
Frequently Asked Questions
Why is my CommScope modem light red?
A red light usually indicates a hardware fault, a failing backup battery, or a loss of service. Power cycle the modem first. If the red light returns, contact your ISP for a signal check or battery replacement.
What does it mean when all my modem lights are off?
No lights at all means the modem is not receiving power. Try a different outlet, inspect the power adapter for damage, and make sure the power button (if present) is switched on.
How long should I wait after rebooting my modem?
Allow 5 to 10 minutes for all lights to stabilize. Some firmware updates may take up to 15 minutes during the boot process.
Why is my online light blinking and not turning solid?
A blinking online light means the modem is trying to authenticate with your ISP. If it continues for more than 10 minutes, the modem may not be provisioned correctly. Call your ISP to verify the MAC address on file matches your account.
What is the difference between CommScope and Vantiva modems?
Vantiva is the company that took over the home networking business previously part of CommScope and Technicolor. Many modems still carry the CommScope name on the housing but are now serviced under the Vantiva brand. The lights, layout, and troubleshooting steps remain the same.
Can I use my own modem instead of an ISP-rented one?
Yes, most ISPs allow customer-owned modems. Check your provider's approved modem list and confirm the modem supports your service speed before purchasing.
How do I factory reset my CommScope or Vantiva modem?
Locate the recessed reset button on the back of the modem. Use a paperclip to press and hold it for 15 to 30 seconds. The modem will reboot with default settings, erasing custom configurations like WiFi name and password.
