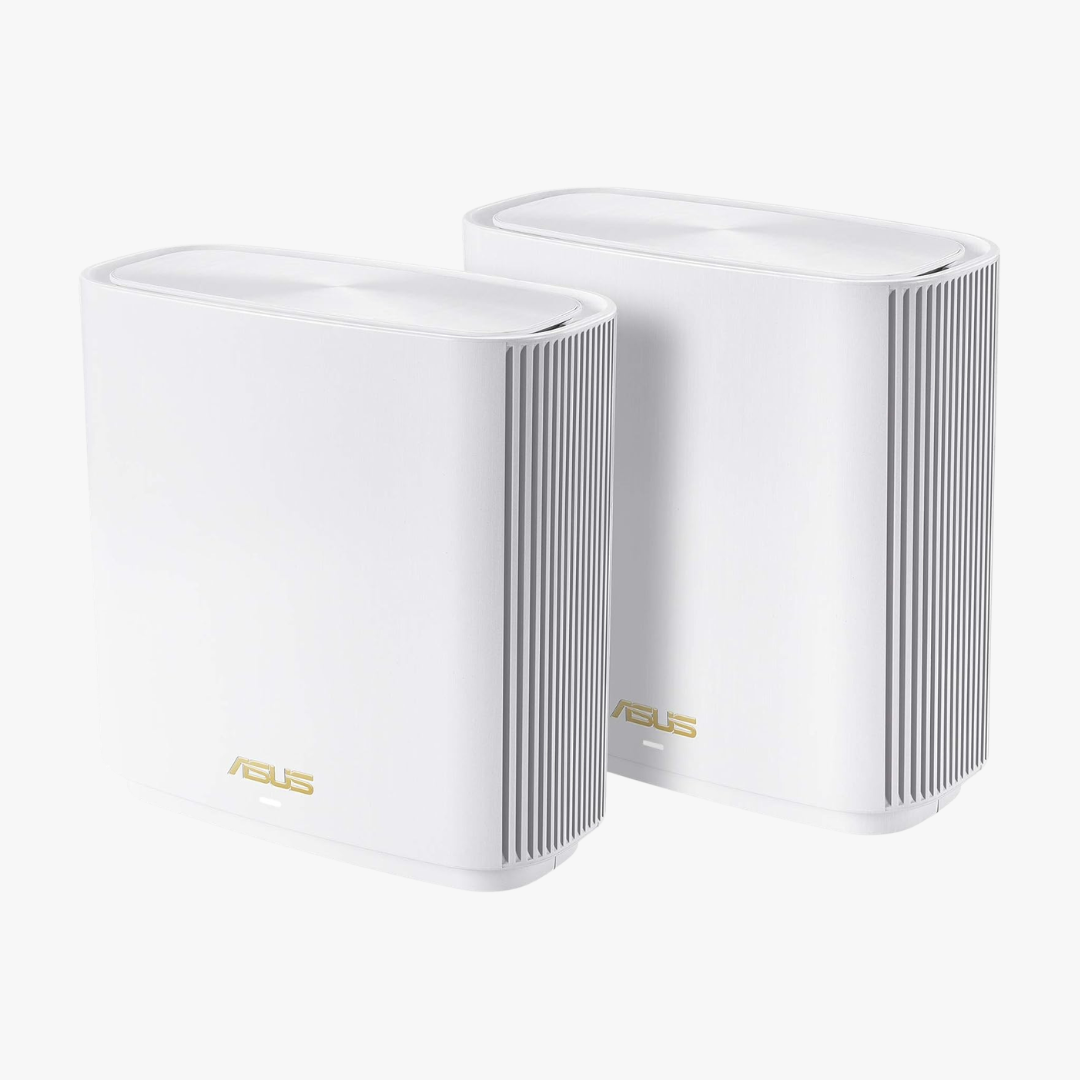

ASUS ZenWiFi XT8 AX6600 Tri-Band Mesh WiFi 6 System (2-Pack)

Key Takeaways:

• Tri-band WiFi 6 mesh system rated at AX6600 (574 + 1201 + 4804 Mbps) with coverage up to 5,500 sq ft from a 2-pack
• Includes a 2.5 Gbps WAN port, three Gigabit LAN ports, and USB 3.1 Gen 1 on each unit for flexible wired and wireless connectivity
• Lifetime AiProtection Pro security powered by Trend Micro and built-in parental controls at no additional cost

ASUS ZenWiFi XT8 AX6600 Overview

The ASUS ZenWiFi XT8 is a tri-band WiFi 6 (802.11ax) mesh system designed to deliver reliable whole-home wireless coverage. Sold as a 2-pack, the XT8 is rated at AX6600, combining three wireless bands for a total throughput of 6,600 Mbps: 574 Mbps on the 2.4 GHz band, 1,201 Mbps on the first 5 GHz band, and 4,804 Mbps on the second 5 GHz band. ASUS rates the 2-pack for coverage up to 5,500 square feet across 6 or more rooms, making it suitable for medium to large homes.

Each XT8 unit is powered by a quad-core 1.5 GHz Broadcom BCM6755 processor with 512 MB of RAM and 256 MB of flash storage. Six internal antennas are positioned at a 45-degree upward angle to maximize signal distribution. The system supports 160 MHz channel bandwidth, OFDMA, MU-MIMO, beamforming, and 1024-QAM modulation for efficient data delivery across multiple connected devices.

Ports and Connectivity

Each unit in the XT8 system includes one 2.5 Gbps WAN port, three Gigabit Ethernet LAN ports, and one USB 3.1 Gen 1 port. The 2.5G WAN port supports higher-speed internet plans, while LAN aggregation is available for users who need faster wired throughput. The USB port enables 4G LTE or 5G mobile tethering as a WAN failover option, as well as file sharing through attached storage devices.

Network Management and Security

The ZenWiFi XT8 includes AiProtection Pro, a lifetime network security suite powered by Trend Micro. This provides malicious site blocking, two-way intrusion prevention (IPS), and infected device detection at no recurring cost. Built-in parental controls allow you to set content filters, schedule internet access by device, and view activity reports through the ASUS Router app.

The system supports three separate SSIDs, giving you the option to create distinct networks for different device groups or guest access. VPN support includes WireGuard, OpenVPN, PPTP, L2TP, and IPSec for both client and server configurations. Additional features include Instant Guard VPN, QoS bandwidth prioritization, and a wireless scheduler.

Setup and Expandability

Initial setup is handled through the ASUS Router app in three steps. Both units in the 2-pack are identical, so either one can serve as the router or satellite. The XT8 supports ASUS AiMesh, which allows you to expand coverage by adding any AiMesh-compatible ASUS router or mesh node to the network. The system is also compatible with Alexa and IFTTT for smart home integration.

Specifications

• WiFi Standard: WiFi 6 (802.11ax), backward compatible with 802.11a/b/g/n/ac
• Speed Rating: AX6600 (574 + 1201 + 4804 Mbps)
• Bands: Tri-band (2.4 GHz + 5 GHz-1 + 5 GHz-2)
• Processor: Quad-core Broadcom BCM6755, 1.5 GHz
• Memory: 512 MB RAM / 256 MB flash
• Antennas: 6 internal
• Ports (per unit): 1x 2.5G WAN, 3x Gigabit LAN, 1x USB 3.1 Gen 1
• Coverage: Up to 5,500 sq ft (2-pack)
• Channel Width: 20/40/80/160 MHz
• WiFi Technology: OFDMA, MU-MIMO, beamforming, 1024-QAM
• Security: WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, WPS, DNS-over-TLS
• Network Security: AiProtection Pro (Trend Micro), lifetime included
• VPN: WireGuard, OpenVPN, PPTP, L2TP, IPSec (client and server)
• Smart Home: Alexa, IFTTT compatible
• Dimensions (per unit): 6.6 x 6.3 x 2.9 inches
• Power: AC Input 110V-240V (50/60 Hz); DC Output 19V/1.75A or 12V/3A
• Color: White
• In the Box: 2x ZenWiFi AX units, RJ-45 cable, power adapters, quick start guide, warranty card

Frequently Asked Questions

Is the ASUS ZenWiFi XT8 a router or a mesh system?

The ZenWiFi XT8 is a mesh WiFi system. The 2-pack includes two identical units that work together to provide whole-home coverage. Either unit can function as the primary router or satellite.

Does the ZenWiFi XT8 support wired backhaul?

Yes. You can connect the two XT8 units with an Ethernet cable for a dedicated wired backhaul connection. The system also supports wireless backhaul using one of the dedicated 5 GHz bands.

Can I add more nodes to the ASUS ZenWiFi XT8 system?

Yes. The XT8 supports ASUS AiMesh, which lets you add additional ZenWiFi units or any AiMesh-compatible ASUS router to expand your network coverage.

Does the ASUS ZenWiFi XT8 require a subscription for security features?

No. AiProtection Pro, powered by Trend Micro, is included for the lifetime of the device at no additional cost. This covers malicious site blocking, intrusion prevention, and infected device detection.

Does the ZenWiFi XT8 have a 2.5 Gbps port?

Yes. Each XT8 unit includes one 2.5 Gbps WAN port, which supports higher-speed internet plans beyond standard Gigabit connections.
