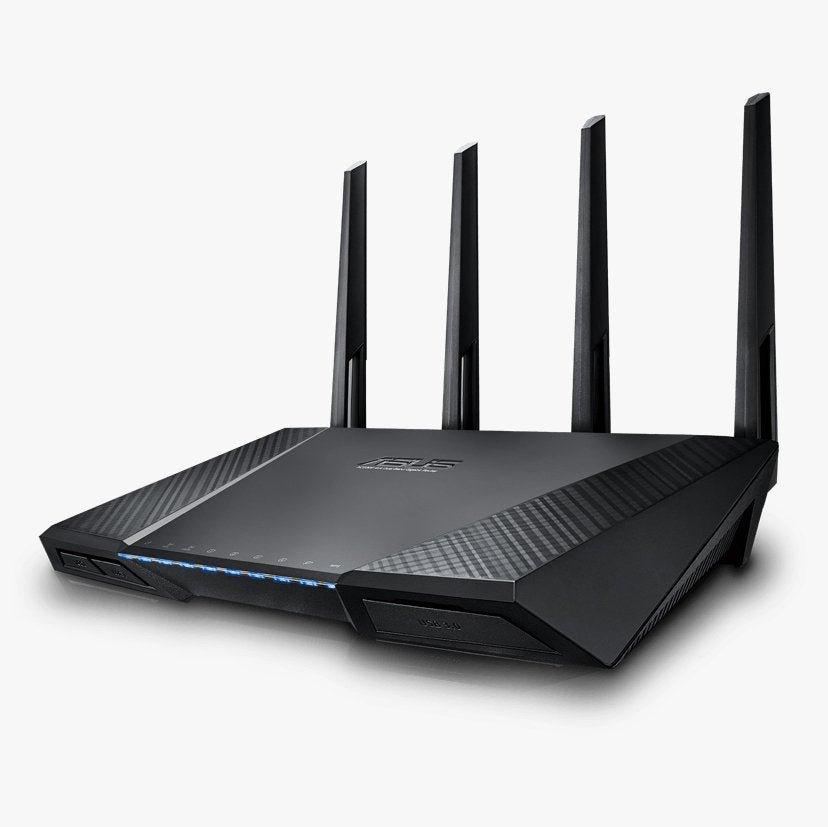

ASUS RT-AC87U AC2400 Dual-Band Wireless Router

ASUS RT-AC87U Overview

The ASUS RT-AC87U is a dual-band AC2400 smart WiFi router and one of the first routers built with a true 4x4 antenna design. Four transmit and four receive streams deliver combined wireless speeds up to 2334 Mbps: up to 1734 Mbps on the 5GHz band and 600 Mbps on 2.4GHz, plenty of headroom for 4K streaming, large file transfers, and low-latency online gaming at the same time.

Under the hood, a 1GHz dual-core main processor handles routing, USB, and 2.4GHz traffic while a second dedicated dual-core processor runs the 5GHz band. Hardware NAT acceleration removes the usual bottleneck between your internet connection and your home network, boosting WAN-to-LAN throughput two to five times over software-based routing.

Key Features

• Dual-band AC2400 WiFi with combined speeds up to 2334 Mbps (600 + 1734 Mbps)
• True 4x4 antenna design with MU-MIMO support and AiRadar beamforming for strong, stable coverage to the far corners of your home
• AiProtection network security powered by Trend Micro, included free for the life of the router, with robust parental controls
• Adaptive QoS prioritizes gaming, streaming, and work traffic the way you choose
• 1GHz dual-core processor plus a dedicated 5GHz WiFi processor, with hardware NAT acceleration
• Four Gigabit LAN ports and one Gigabit WAN port for wired devices
• USB 3.0 and USB 2.0 ports for shared storage, printer sharing, and 3G/4G dongle backup internet
• Dual WAN failover and a built-in VPN server (OpenVPN, PPTP, L2TP)

ASUSWRT Interface, App Control, and AiCloud

The ASUSWRT web interface gets you online with a simple three-step setup and no discs or extra software, then opens up a deep set of advanced options when you want them. The ASUS Router app adds setup, traffic monitoring, and device management from your phone, while AiCloud 2.0 lets you access, sync, and stream files on a connected USB drive from anywhere.

Specifications

What's Included

Will this work with my internet company?

Yes. As a wireless router, the RT-AC87U is not tied to any single internet company. It works with cable, DSL, and fiber providers alike once it is connected to a compatible modem or fiber gateway. Need a modem to go with it? You can browse modems by internet provider.

Already have a provider-issued modem router gateway? The RT-AC87U can run behind it, and putting the gateway in bridge mode lets the ASUS take over all WiFi duties for the best results.

Skip the Monthly Rental Fee

Equipment rental from most internet providers runs $10 to $14 per month, up to $168 per year. A professionally refurbished RT-AC87U typically costs less than a single year of those fees while outperforming the standard rental gateway.

Setup

1. Connect an Ethernet cable from your modem to the RT-AC87U's blue WAN port, then power cycle the modem.
2. Plug in the router, attach the four antennas, and wait for the power light to stabilize.
3. Connect a phone or computer to the preset WiFi network printed on the router's label.
4. Open router.asus.com in a browser (or the ASUS Router app) and follow the quick setup wizard to name your network and set a password.
5. Reconnect your devices to the new network.
